16吨单梁起重机技术参数16吨单梁行车外形尺寸图纸
16吨单梁起重机技术参数表，16吨单梁行车外形尺寸图。LDA型16吨行车结构图外形结构图。16吨单梁起重机参数包含起重机自重总重，Z大轮压，Z小轮压，电机型号功率，起重量，行车工作制度，行吊车轮直径，航车跨度，航吊起升高度等。

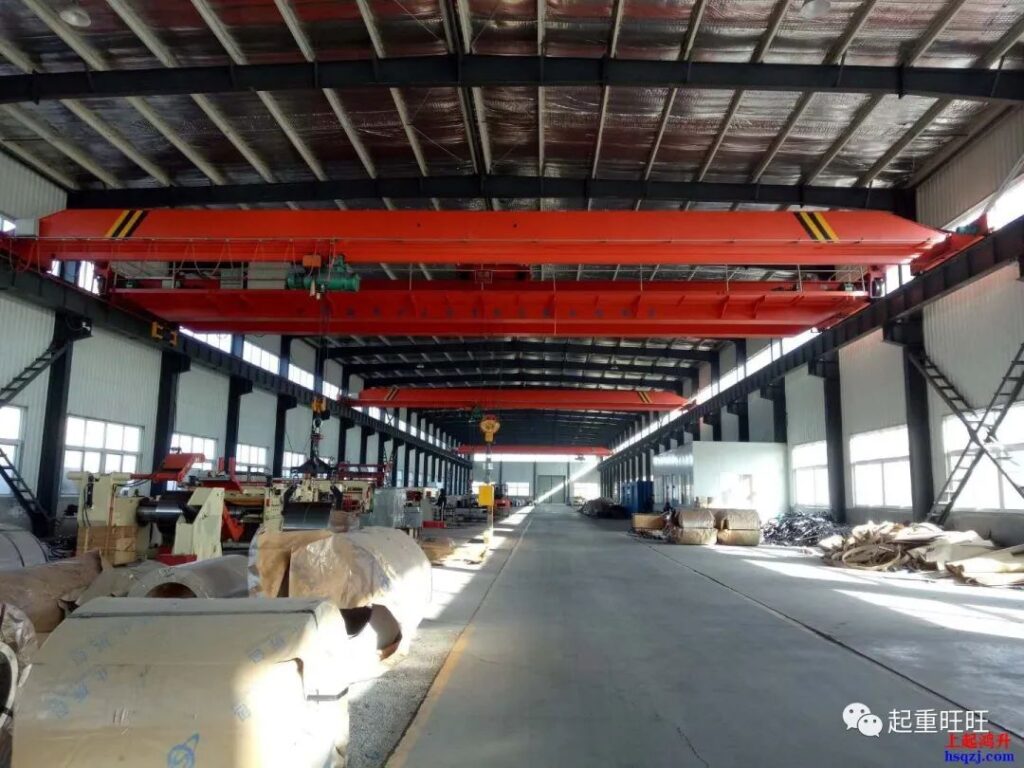

16吨单梁起重机图片展示：
16吨单梁起重机技术参数表：
| 16吨行车起重机运行机构 | 运动速度 m/min | (地)20m/min | (地)30m/min | (室地)45m/min | (室地)60m/min | (室地)75m/min | |
| 速比 | 58.78 | 39.38 | 26.36 | 19.37 | 15.88 | ||
| 电动机 | 型号 | ZDY122-4 | ZDY131S-4 ZDR112L1-4 |
ZDY112L1-4 | |||
| 功率 kw | 1.5kwx2 | 2.2kwx2 | 2.2kwx2 | ||||
| 转速(r/min) | 1380r/min | ||||||
| 起升机构(电动葫芦) 及电动葫芦运行机构 |
电动葫芦型式 | MD1型电动葫芦 CD1型电动葫芦 | |||||
| 起升速度(m/min) | 3.5m/min 3.5/0.35m/min | ||||||
| 起升高度H(m) | 12米 18米 24米 30米 | ||||||
| 运动速度(m/min) | 20m/min 30m/min | ||||||
| 电动机 | 锥形鼠笼型 | ||||||
| 16吨行车工作制度 | A3-A5 | ||||||
| 16吨单梁行车电源 | 3相380v 50Hz | ||||||
| 16吨行车车轮直径 | φ370mm | ||||||
| 16吨行车轨道面宽 | 37-70mm | ||||||

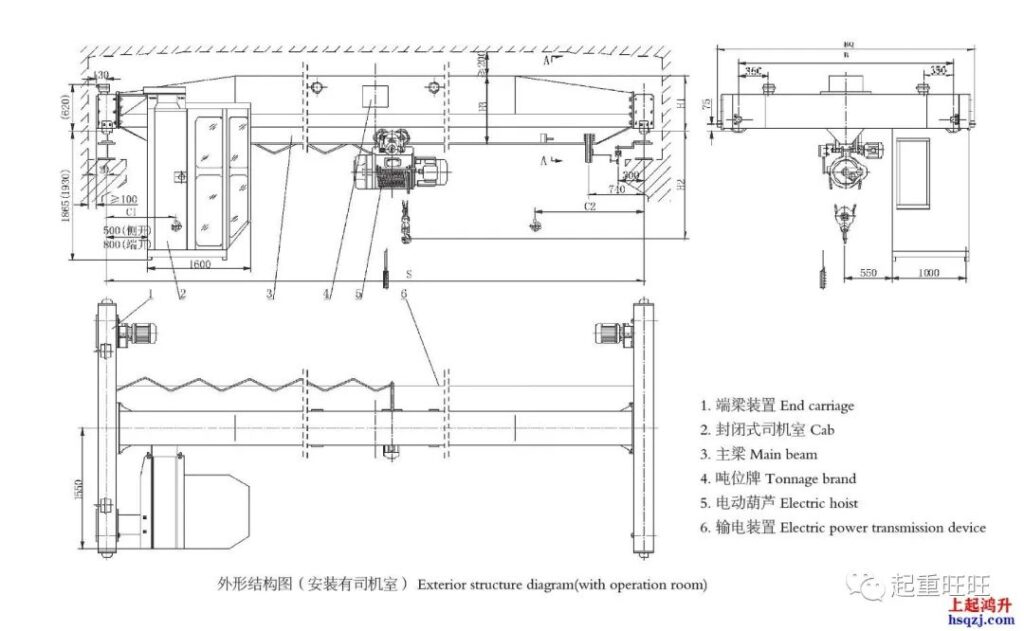

16吨行车结构图外形结构图：
16吨单梁行车外形尺寸图：
| 起重量t | 跨度m | 16吨单梁行车基本尺寸 | 起重机总量(t) | Z大轮压(t) | Z小轮压(t) | ||||||
| H1 | H2 | H3 | B | C1 | C2 | W | |||||
| 16 | 7.5 | 700mm | 2000mm | 1000mm | 2500mm | 1830mm | 1230mm | 2000mm | 3.15/3.61吨 | 9.01/9.25KN | 0.82/0.95KN |
| 8 | 3.20/3.71吨 | 9.12/9.27KN | 0.85/0.98KN | ||||||||
| 8.5 | 3.38/3.82吨 | 9.14/9.29KN | 0.88/1.01KN | ||||||||
| 9 | 3.91/3.50吨 | 9.16/9.31KN | 0.91/1.04KN | ||||||||
| 9.5 | 3.62/4.02吨 | 9.18/9.33KN | 0.94/1.07KN | ||||||||
| 10 | 3.65/4.12吨 | 9.21/9.36KN | 0.97/1.10KN | ||||||||
| 10.5 | 3.75/4.23吨 | 9.23/9.38KN | 1.00/1.03KN | ||||||||
| 11 | 3.88/4.33吨 | 9.25/9.41KN | 1.02/1.16KN | ||||||||
| 11.5 | 800mm | 2000mm | 1100mm | 3000mm | 1830mm | 1230mm | 2500mm | 3.98/4.46吨 | 9.30/9.41KN | 1.05/1.15KN | |
| 12 | 4.05/4.58吨 | 9.33/9.59KN | 1.07/1.17KN | ||||||||
| 12.5 | 4.20/4.68吨 | 9.36/9.62KN | 1.09/1.19KN | ||||||||
| 13 | 4.32/4.70吨 | 9.39/9.65KN | 1.11/1.21KN | ||||||||
| 13.5 | 4.42/4.81吨 | 9.42/9.68KN | 1.13/1.23KN | ||||||||
| 14 | 4.35/4.93吨 | 9.45/9.71KN | 1.15/1.25KN | ||||||||
| 14.5 | 900mm | 2000mm | 1200mm | 3000mm | 1830mm | 1230mm | 2500mm | 5.30/5.75吨 | 9.55/9.80KN | 1.35/1.45KN | |
| 15 | 5.40/5.87吨 | 9.58/9.83KN | 1.37/1.47KN | ||||||||
| 15.5 | 5.51/5.99吨 | 9.61/9.86KN | 1.38/1.40KN | ||||||||
| 16 | 16 | 1050mm | 2100mm | 1400mm | 3500mm | 1830mm | 1230mm | 2500mm | 6.85/7.36吨 | 11.74/12.59KN | 1.76/1361KN |
| 16.5 | 7.00/7.55吨 | 11.62/11.77KN | 1.63/1.78KN | ||||||||
| 17 | 7.15/7.78吨 | 11.65/11.80KN | 1.65/1.80KN | ||||||||
| 17.5 | 1050mm | 2100mm | 1400mm | 3500mm | 1830mm | 1230mm | 3000mm | 7.40/7.92吨 | 12.20/13.50KN | 1.75/1.90KN | |
| 18 | 7.55/8.08吨 | 12.26/13.56KN | 1.79/1.94KN | ||||||||
| 18.5 | 7.70/8.22吨 | 12.32/13.62KN | 1.83/1.98KN | ||||||||
| 19 | 7.75/8.30吨 | 12.38/13.68KN | 1.87/2.02KN | ||||||||
| 19.5 | 7.90/8.45吨 | 13.44/14.72KN | 1.91/2.06KN | ||||||||
| 20 | 1050mm | 2100mm | 1450mm | 3500mm | 1830mm | 1230mm | 3000mm | 8.54/9.01吨 | 13.75/15.05KN | 2.05/2.20KN | |
| 21.5 | 8.67/9.14吨 | 13.80/15.10KN | 2.07/2.22KN | ||||||||
| 22 | 8.80/9.27吨 | 13.85/15.15KN | 2.09/2.24KN | ||||||||
| 22.5 | 8.93/9.40吨 | 13.90/15.20KN | 2.11/2.26KN | ||||||||
16吨电动单梁起重机是电动单梁行车中比较常用吨位行车，以上就是为大家介绍的16吨单梁起重机主要技术参数表、16吨单梁行车外形尺寸图及16吨单梁起重机外形结构图。
